Stella Vision for Java is equipped with not only the basic drawing functions such as box, circle, flash, polyline, single arc, text, but also the additional functions like polygon & parallel line.
By using the drawing system, it is possible to execute the quick data making.
- Function of drawing
Polyline, Parallel lines, Bunch-line, Single line, Single arc, Drawing the circle, Box, Cbox, Polygon, Flash, Block, Freehand, Text, Dimension line drawing function.
Edit Function
A
variety of data edit functions are equipped in Stella Vision for Java. Those
functions enables you to process the data as your pleases. The edit processing
of complex data can be instantaneously done.
- Function of Edit
Explode, Polyline vertex edit, Copy, Mirror, Rotate, Array, Trim, Stretch,
Edge Extend, Change Corner Shape, Add Corner, Move Corner, The object is
registered as a block, Register (Expand) Special Flash, Edit Text, Put
Text, Corner processing (Fillet, Chamfer), Break, Offset, Adjust Vertex
Space, Extend, Cut Vertex (Segment), Unrestricted undo, Redo etc.
PL to PR
The target data
Outline display
Execution result (light-blue)
The outline of the poly line with line width or a flash is created.
It can process at high speed also to mass data.
Check Function
Stella
Vision for Java has various check functions, and inspects data instantaneously.
In addition, the accurate checking can be realized by [Sequential Pan] that
displays your desired object one by one, and displaying scope window.
- Function of Check
Inspection command (Object, Distance, Angle, Point, Clearance, List, Line
Length, Total Area, Total Segments)
Check Overlap Flash, Check Cross Polyline, Check Corner Angle, Check Needless Point, Check Small Segment, Check Direction,
Show Direction, Show Sorted Number, Show Start End Point. Etc.
Scan ＆ Check
Scanning & check command detects the specified "difference part"
of layer data in an instant.
For example, in case former data and outline data are compared and inspected, as for inspection visually, much time and time and effort are needed. If scanning & check command is used when such, it is easy operation and, moreover, exact inspection can be conducted in a short time (when data of 2mm of every direction is performed in the accuracy of 1 micron, it completes in about 15 seconds). The round inspection function for it to be automatic and to inspect the specified domain is carried.
It is the target data.
When a difference part is discovered, a mark sticks in this way.
A result changes with the accuracy and the thresholds which were specified.
Influence by the difference in dot size
The case which made dot size high.
here Speed serious consideration it is .
Inspection can be completed quickly.
The case which made dot size low.
(the same thing as the upper data is used and the same range is inspected).
here Accuracy priority it is . Although time is taken rather than the time of lowering accuracy, the difference which cannot be discovered if accuracy is not raised can be discovered.
DRC
A design rule check (DRC) conducts interval inspection of objects. The check of the inner side in a clearance (between different potential) check and self clearance (between these potential) and an outside can be performed.
The check which outputted only the minimum clearance part for the object,
or took into consideration the inside-and-outside relation of an object
again is also possible.
Batch Cheking
Package execution of the various inspection commands can be carried out.
In order to input, summarize and perform a parameter in one dialog, it
is not necessary to repeat execution of a single inspection command repeatedly.
Opened Polyline
Segment Intersection
Segment Contact
Segment Overlap
Small Segment (The segment below the specified length is detected.)
Inside Corner
Outside Corner
Needless Point (The unnecessary peak (constituting point) is detected.)
Polyline Overlap
Flash Contact (The position relation of flashes is investigated and a duplicate
flash is detected.)
Polygon Contact (Contact of polygons is detected.)
Although inspection equivalent to a package check can be conducted using
a process scheduler, a package check can carry out a parameter input, looking
at the parameter and mark size of each inspection command, form, etc. mutually,
in order to input various parameters into one dialog.
Considering that each parameter must be memorized or it must improve repeatedly,
a process scheduler is very convenient.

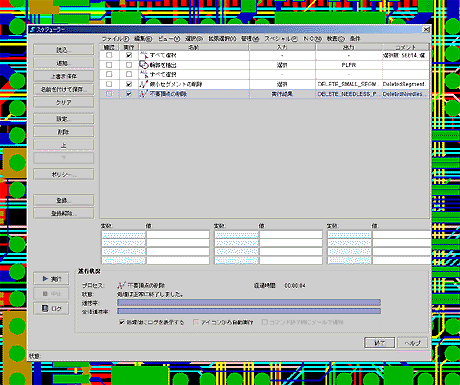

Process Scheduler
Finite work is unified and a seamless work process is realized.Usage is very simple.
A parameter is set as the command in a system and the flow of a command is only created.
Execution executes the registered command one after another.
It can set up easily with the feeling which performs videotape-recording reservation of video.
A series of registered flows can be saved as a file.
Furthermore, as a convenient function, on the tool bar of a menu, an icon can be assigned and a schedule can be registered. thereby, even the click of an icon can come out of and perform the registered schedule
If it is made to perform, it will only wait for the rest.
It becomes unnecessary to perform the parameter input of finite work each
time. Mistake of forgetting an input mistake and command execution of a
parameter can be prevented.
.
Dimension
Dimension can be made to draw to an object.
The color and size of a size line are also collectively manageable.
The size of each element of dimension can be united in accordance with
the size of drawing data.
Format of Input and Output
Stella Vision for Java corresponds to abundant input-and-output data.
Especially correspondence of data reading is powerful and it is possible
to read many of data which has generally appeared on the market.
ODB++
HIMT Structure
Bitmap
NC program
DPF file
HPGL/2
STZ - STZ file is the omission of Stella Zip Format.
SBZ - SBZ file is the omission of Stella Binary Zipped Format.
STL - The original format of Stella Vision (OS/2)
