Stella original measuring system (ST/LST series) by the CAD data match-up method
Inspection system with high cost performance “LST Series” has been released
By new structure design, we could succeed to reduce system cost
Low cost inspection system which is possible to be customized correspond to needs of field has come into existence
Feature
①Expansion of function, customization ability
It introduces original element technology which is stored for many years while keeping structure of the existing system “ST series”. It's possible to correspond to needs of field flexibly.
It's possible to prepare an inspect system correspond to needs of field flexibly by expansion of function and customization. For example, it's possible to use as a system which find out caribration value in the time of correspond to fine pattern by use of data caribration. Also, it's possible to inspect while recording data as a visual check assisted system. Of course, it's possible to operate some systems simultaneously.
②Compact, lightweight, and use any locations
LST series can be placed with use any location because it's compact and lightweight. For example, it can be placed on the desktop. Furthermore, it can be placed any place because of silent design.
Work specification
Process area
290×410 mm
Maximum board size
349×473 mm
Substrate thickness
0.1 - 4.0 mm
Total precision
±0.02mm
Measuring precision
±0.01mm
Stage specification
Stroke
[XY]310×410 mm [Z]20 mm
Table Size
349×473 mm
Driving method
Stepping-motor + ball screw
Control
Closed loop by making use of linear scale
Camera specification
Camera
14 M pixels / Color CCD(4384×3288)
Scale
0.14×
Pixel size
0.01mm
Illuminator
Transmission
Machine specification
Size (WxDxH)
635×730×550 mm
Weight
40 ㎏
Power supply
AC 100 V
LST-G Series

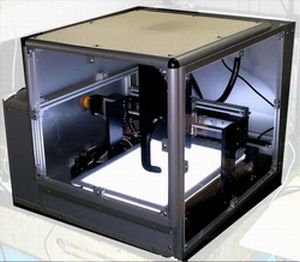

▲LST3040G
LST-G is a low-cost model of measuring and AOI system. It is possible to customize functions upon request of field needs.
Concretely, it is possible to measure and inspect external dimensions of device, pitch of holes, slit width, corner R, external dimensions and angle of hole, and so on.
Also, it is possible to measure hole diameter of through-hole and non through-hole for NC hole application use.
Besides, it can be set up in any place because of compact size and light weight. For example, it can be used as a desk-top machine in the desk.
In general, while measuring work is done, it is necessary to prepare a measuring program such as teaching, input of measuring point, and so on. On the other hand, in LST3040G, it is possible to auto-manufacture a measuring program corresponds to the CAD data. Therefore, preparation of measuring is not necessary. Also, it is possible to treat a set of work from preparation of data to AOI continuously, because it is operated simultaneously with our software (Router Vision).
