Stella original measuring system (ST/LST series) by the CAD data match-up method

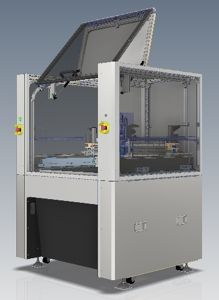

Verification system gLST6050-Verificationh
Specification of the substrate (Single table)
Max verification range
600 ~ 500 o
Max substrate size
650 ~ 550 o
Max substrate thickness
5.0 o
Specification of the stage
Moving range
[XY] 610 ~ 510 o [Z]15 o
Table size
710 ~ 640 o
Driving method
Stepping motor + belt drive
Specification of camera and lens (Single table)
Camera
CMOS color camera
Illumination
Ring illumination, Coaxial episcopic illumination
Specification of softwareOSJ[J
Reading data
SBZ, Gerber 274D, X, DPF, DXF, NC, and so on
Alignment
indicated 3 or 4 points in the data
Review function
Adopt
Specification of PCL
OS
Windows10 Pro 64bit
CPU
Intel or AMD
Memory
16GB and over
HDD capacity
1TB and over
Verification system gLST6050-Verificationh for AOI system was released as an optional product. As a result, it's possible to operate AOI and verification effectively by 1 person.
