Manufacturing process of E-paper display 2024 edition

¡Explain E-paper display manufacturing process by illustration

¡Full-cover from basic process to next generation process

¡Cover structure, dislaying mechanism, manufacturing process

¡Easy to look at the file using any PC because of the format of browser, for example IE (Internet Explorer)

¡Possible to access at will from Index Page to detail page

¡Describe these illustrations at 3D image

¡Number of total file are 108 (about 200 page in A4 form equivalent)

¡Illustrations of device structure and process flow are approximately 420


CONTENT

¡Structure, dislaying mechanism, and manufacturing process (general theory) of E-paper display

Charged toner type
œMicrocapsule type electrophoretic display
Segment panel, PM-panel, AM-panel, Full-color AM-panel, Front driving type

œToner moving type display
Segment panel, PM-panel, AM-panel, Color PM-panel, Color AM-panel

œIn-plane type electrophoretic display
AM-panel, Full-color AM-panel

œColor liquid type electrophoretic display
Segment panel, PM-panel, AM-panel, Full-color PM-panel, Full-color AM-panel (R, G, B independent method, CF method)

œHybrid-plane type electrophoretic display
Reflective display (AM-panel, Full-color AM-panel), Full-color reflective display by using PL phenomenon

œTwisting-ball type display
Segment panel/PM-panel

Liquid crystal display (LCD) type
œPolymer network LCD
PM-panel, AM-panel
œCholesteric LCD
PM-panel, Color PM-panel (Stacked layer type, single layer type)

œFerroelectric LCD
PM-panel

Electrochemistry type @
œElectrolytic precipitation type display
PM-panel, Color PM-panel

œOrganic electrochromic display
PM-panel, Color PM-panel, Color AM-panel

œInorganic electrochromic display
PM-panel, Multi-color PM-panel

œHybrid electrochromic display
PM-panel

Electrowetting display (EWD) type
PM-panel, Color PM-panel with CF, Color AM-panel with CF, R, G, B independent color PM-panel, R, G, B independent color AM-panel, Color AM-panel with COA

¡Pocess flow of E-paper display (particular theory)@@
œForming process of transparent electrode
œForming process of metal electrode @
œForming process of TFT (a-Si TFT, IGZO-TFT, Organic-TFT)@@

œForming process of black matrix (BM)
œForming process of coloring layer
œForming process of overcoat layer
œPatterning process of R, G, B-PL layer

œForming process of insulator layer
œForming process of rib
œForming process of bank

œInjection process of LC material
œFilling process of Ch-LC material
œForming process of R, G, B Ch-LC layer
œPatterning process of R, G, B sub-pixel
œDropping process of R, G, B color oil
œFilling process of dispersion liquid
œFilling process of electrolyte
œFilling process of toner
œDeposition process of inorganic alignment film

œForming process of seal layer
œForming process of post-spacer
œDispersion process of spacer-ball
œPolymer network process

¡What's structure color H

¡A word of caution in manufacturing of display with flexible substrate

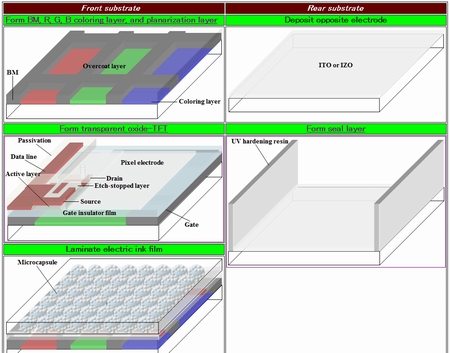

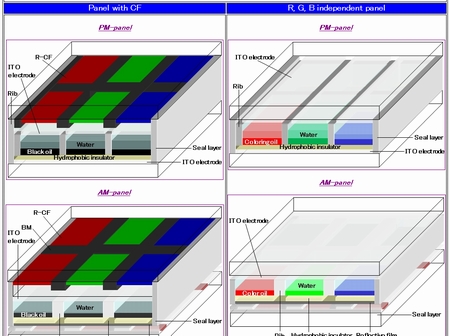

£Panel structure of EWD


£Process flow of microcapsule type electrophoretic display

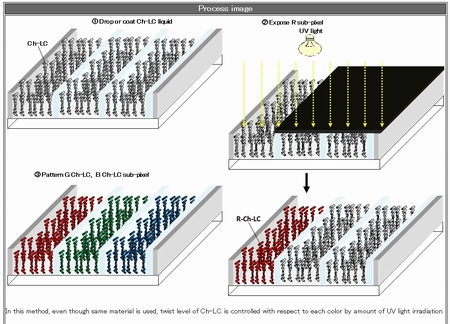

£Forming process of R, G, B Ch-LC layer

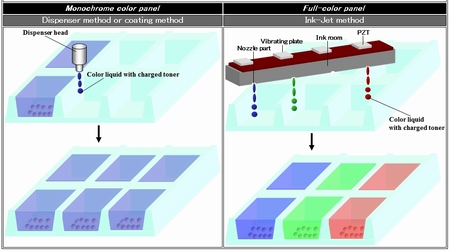

£Dropping process of R, G, B color ink

Full-original CD-ROM

CD-ROM for Windows • Macintosh
PriceF22,000 yen (free shipping)
Release dateFMay,13 2024
@
1-1544-7 Kaijincho Minami, Funabashi, Chiba, Japan Zip: 273-0024
Tel: +81-(0)47-432-5031
Fax: +81-(0)47-432-5032
e-Mail support@stellacorp.co.jp
https://www.stellacorp.co.jp
While you order this CD-ROM, please input below points and send to info@stellacorp.co.jp.

CD-ROMFE-paper display manufacturing process
Campany's NameF
SectionF
NameF
AddressF
TELF
FAXF
e-mail addressF
 Remark

If you are domestic customer, we will send the product and invoice. Please pay to ours account by bank remittance until specified date.

If you are overseas customer, we will send E-mail to you. Please pay to ours account by bank remittance. If we confirm bank transfer, we send the product immediately.
