PM-EPD process flow and our product

Process flow(an example as micro-capsule type electrophoretic display by PM driving)
Our product

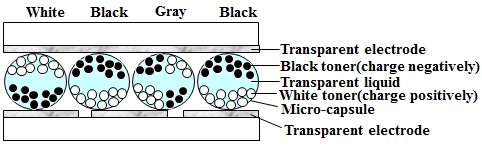

Device structure




‡@Draw up CAD data

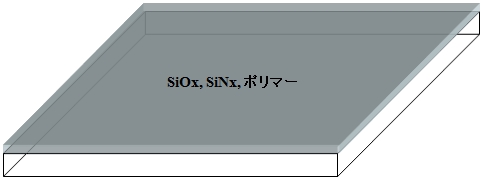

‡AForm gas-barrier layer(in front the substrate)

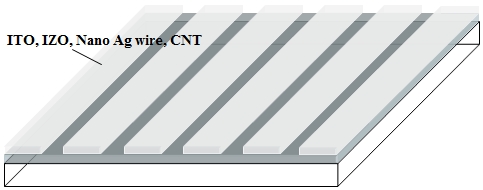

‡BForm transparent electrodes(in the front substrate)



Measure and inspect after development

Measuring • AOI inspection system gST seriesh

Repair after patterning of ITO electrodes
Repair system gRepair Visionh

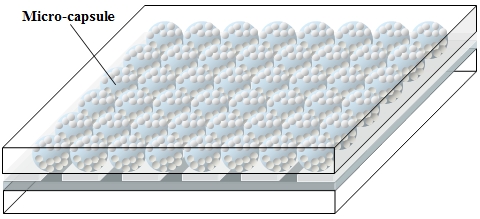

‡CPrint or coat electric ink(in the front substrate)

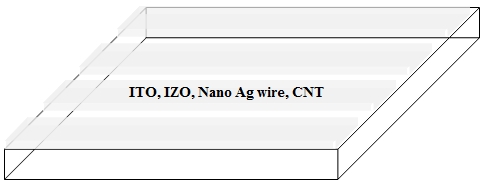

‡DForm transparent electrodes(in the rear substrate)



Measure and inspect after development

Measuring • AOI inspection system gST seriesh

Repair after patterning of ITO electrodes
Repair system gRepair Visionh

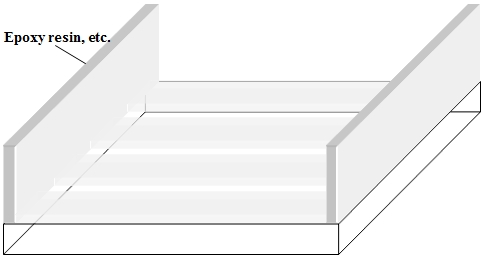

‡EForm sealing laer(in the rear substrare)

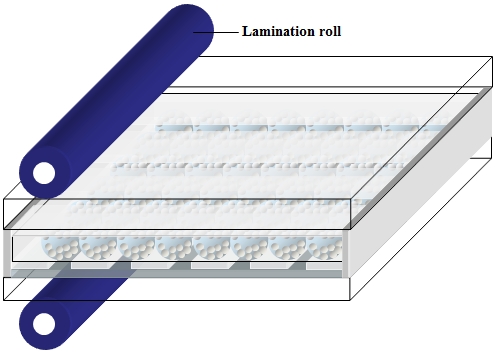

‡FAssemble both substrates
