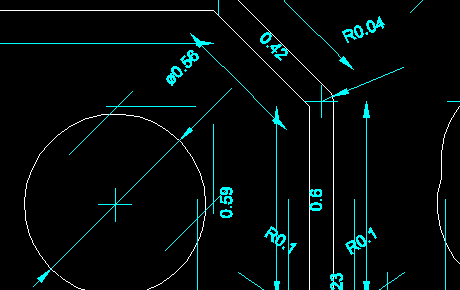

Dimension can be made to draw to an object.
The color and size of a size line are also collectively manageable.
The size of each element of dimension can be united in accordance with
the size of drawing data.
A package indication also of also displaying length and every one angle
can be given to arbitrary objects.
Since it can specify easily whether dimension is displayed, it does not become the obstacle of edit about it.
In case it outputs as a DXF file, dimension can be made to save in data. |
|
