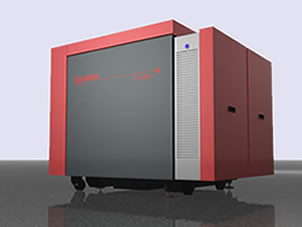

■The throughput of SilverWriter 8850HD is enhanced more than 60 ％ compared
to that of the conventional machine.
■This machine equips three independent film-magazines which can put in 450 films and three kinds of size film to gain maximum flexibility of drawing.
■SilverWriter 8850HD draws up high image quality based on user's severe
design rule. If plot resolution is 25,400dpi (1μ), it's possible to draw
up fine line such as minimum 12.7 μm.
■Two unique image formation functions which conflate a modulation and arrange a pixel with sub-micron eliminate a round error as the other company's product occurs and keep precision of line width with less than 2 μm.
■This machine equips an ultra-stable granite stage, linear motor with maintenance
free, air bearing, new direct driving drum, so that, it promises more than
reliability compared to the old machine.
Resolution
Inch
4,000 - 25,000 dpi + Draft use 2000 dpi
mm
6.25 um - 1um + Draft use 12.5um
Minimum line width
0.4 mil 12.7 um
Plot speed(per hour)
8800
8820
8850
8850
2,000 dpi
5.40
10.80
21.60
549
4,000 dpi
2.70
5.40
10.80
274
8,000 dpi
1.35
2.70
5.40
137
16,000 dpi
0.63
1.26
2.52
64
25,000 dpi
0.29
0.58
1.15
29
Accuracy
Mechanical accuracy
< 0.16 mil
< 4 μm
Repeatability accuracy
< 0.08 mil
< 2 μm
Position accuracy
0.01 mil
0.25 μm
Line width accuracy
< 0.08 mil
< 2 μm
Scalling accuracy
in steps of 0.5 μm
Mechanical specification
Capacity of film
Three independent film-magazines which can put in 450 films and three kinds of size film
Light beam
Red HeNe laser 632.8 nm, 5 mW
Size（W X D）
72.8" X 61"
1850 X 1550 mm
Height
54.3"
1380 mm
Weight
3740 lbs
1700 kg
Temperuture
21℃ ±1℃
humidity
50 % ±2 %
Power supply
Main body: single phase 230 VA 2.3kVA
Vacuum: three-phase 200～230VA 32A
Heat capacity
2,000 W (1,725 kcal/h)
Air supply
87 - 145 PSI 6 - 10 bar
Air quality
0.01mg/m3
Air used amount
88 ft3/h( 2500 L/h)
Calibr8tor

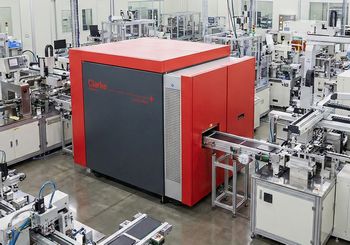

Ucamco's laser photoplotters are accepted world-wide as the benchmark for accuracy, throughput and reliability. The company offers a choice of “drop-in” models for customers who want the highest plot speed, or the finest features (5μm and under), or the best all-round combination of speed, resolution and price.
Their laser photoplotters are available in various throughput and fine-line capability models to best suit our customer's photo tooling production needs.

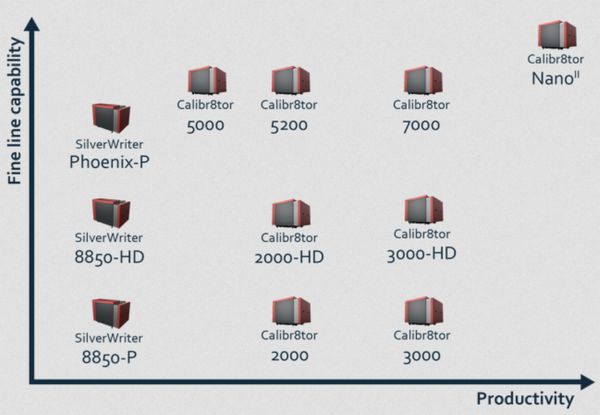

The global plotter benchmark
The latest calibr8tor 3000 series sets a new global benchmark for plot speed and image accuracy on features down to 10 μm. New optics, high-speed electronics and the new FlashRip triple the plot speeds of our SilverWriter series. The high-speed load system converts this to the highest throughput of precision films in the market - without compromising accuracy or reliability. Up to 3 magazines can hold 450 sheets of film of 3 different sizes to give maximum plotting flexibility and cost control.
Unequalled image quality
16 metric and imperial resolutions up to 25,400 ppi (1μm) give optimum settings for every image. Two unique imaging technologies, syntectic modulation and 200,000 ppi pixel-placement, ensure ultra-precise feature definition at every resolution, eliminate the pixel-jump errors found on conventional plotters, and tolerance line widths to less than 2μm.
Precise registration
Dynamic beam positioning accurate to 0.25μm and the patented stress-free film loader ensure an unrivalled geometric accuracy for exact registration for HDI & SBU boards. Reliable 24/7/52 The calibr8tor 2000 series is engineered for fully automatic operation 24/7/52. The granite bed, contactless linear motor, maintenance-free air-bearings and direct-drive drum deliver unrivalled long-term uptime - your guarantee of continuous high productivity and low whole life costs.
Compatible and upgradeable
With its small footprint and ability to accept plot instructions in Gerber, DPF, ODB++, Image 5000 (Expert) or MDA formats, the calibr8tor 2000 series is a wheel-in replacement for conventional plotters. Install a new machine or field-upgrade a SilverWriter 8000: either way the calibr8tor 2000-HD series put you at the cutting edge of plotter technology.
